Piece / projectA lid that starts with the thread
A reverse-engineered jar lid with a 1/4-inch pitch and a translucent-blue prototype.
3D printing • Repair & adaptation
Keep the wardrobe. Replace the fitting.
A broken plastic joint became a reverse-engineering project instead of a reason to replace the whole wardrobe.
Documented June 2021Build story
The need
A cracked fitting left an existing wardrobe in need of repair.
The response
Reverse-engineer the connection and print a PETG replacement.
The result
Replacement fitting photographed installed on the existing rails.
Professional notes
Contribution
Reverse engineering and fabrication of a replacement fitting.
Result
A printed replacement fitting shown installed on the existing wardrobe.
The broken fitting was the problem

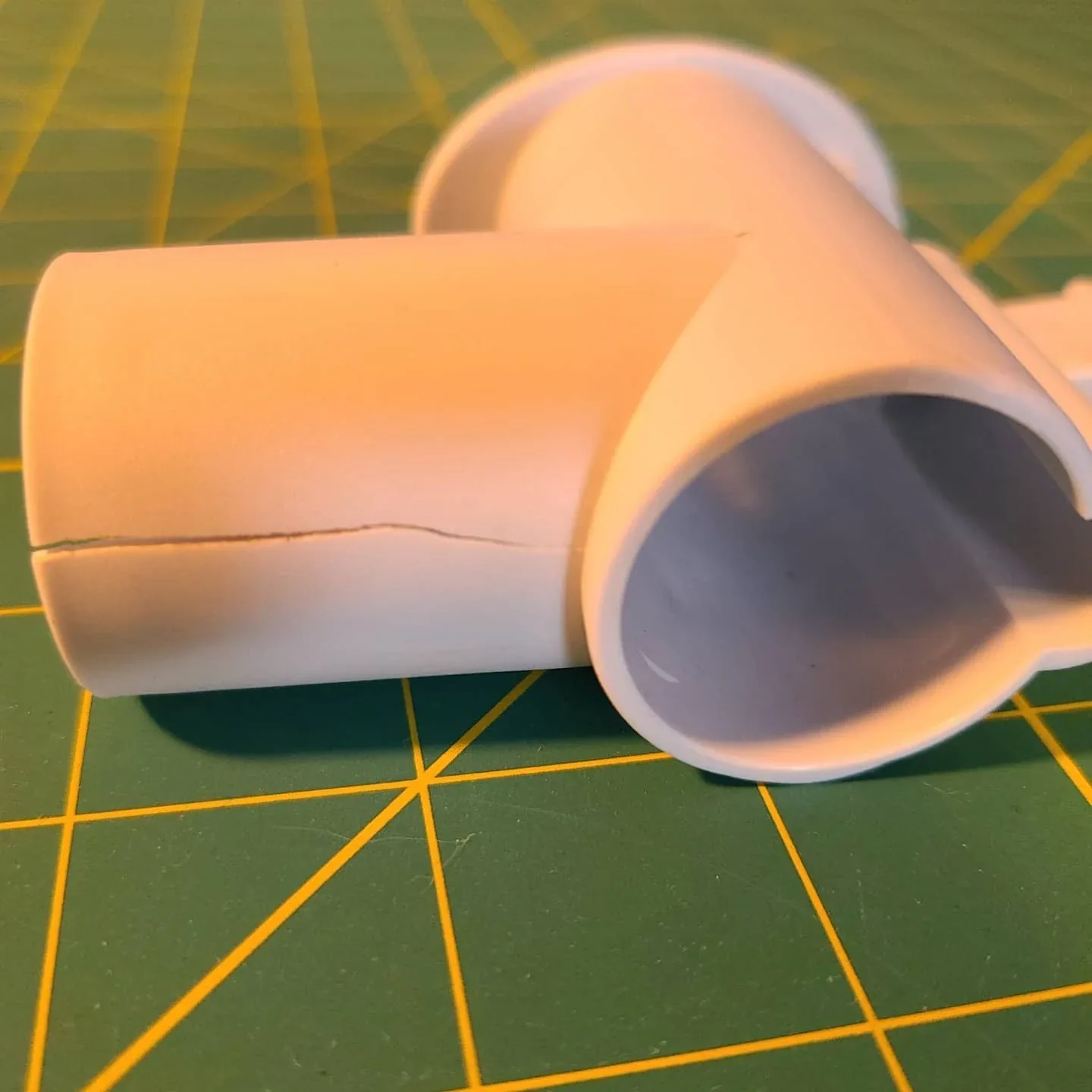

The wardrobe was still useful, but one cracked plastic fitting stopped the rail connection from working. I modeled that fitting in Fusion and printed a PETG replacement instead of replacing the whole wardrobe.
Getting the fit right
The new part had to match the existing rails and connect in the same place as the broken fitting. That made the measurements and mating surfaces more important than changing the overall shape for appearance.
Installed and back in use
The installed photo shows the replacement fitted to the existing rails. I did not perform a formal load test, but the part solved the connection shown in the original repair.
Replacing the failed fitting
The wardrobe was still useful, but one cracked plastic fitting stopped the rail connection from working. I measured the broken part, rebuilt the geometry in Fusion, and printed a PETG replacement that fit the existing rails. The hard part was matching the interfaces that were already there, not changing the outside for appearance. The installed photo shows the replacement back in place. I did not perform a formal load test, so I keep the claim to the repair shown.
Credits & project notes
Replacement work: Michael Pytlowany. The original wardrobe and its hardware are existing products.
The installed photograph is cropped to focus on the fitting and exclude unrelated household detail. The record documents the repair, not a quantified load or service-life test.
